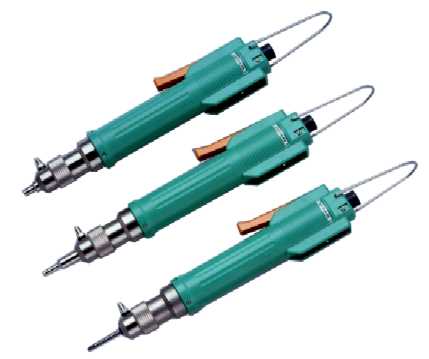

Technart Driver - Model S Family Driver

The MODEL S & M FAMILY DRIVER is the standard model torque driver equipped with switch lever and LED, primarily designed for handheld operation use. Connected with the Technart controller, it provides precise control of screw tightening torque and tightening process, making it suitable for assembly of high precision electric and electronics devices and equipments.

.

It is designed to minimize particle emission, static charge and noise interference. The vacuum suction enables firm chucking and engagement with the bit, of even small-sized miniature screw. It also sucks particles emitted during screw tightening, thus suitable for use in Clean Room environments.

.

The optional mechanism (suffix F) of bit cushion absorbs and minimizes impact and shock to delicate work-piece that may be caused by thrust pressure or arm twist action by the operator.

.

The best selection for most critical ESD sensitive environments is, sister models SG and MG, equipped with continuous bit grounding mechanism.

.

In model SG and MG, the bit is completely grounded always, even during its rotation.

.

For tightening of small size screws of M1 to M3, model S (SG) driver of 32 mm dia. grip, with one-touch quick change chuck for OD 4 mm Dcut shank bit, is prepared (suffix D).

For tightening of larger size screws of M4 to M5, model M (MG) driver of 38 mm dia. grip, with one-touch quick change chuck for 6.35 mm (1/4 inch) HEX shank bit, is prepared (suffix H).

.

Main Features

ERGONOMICS DESIGN GRIP & SWITCH LEVER FOR HANDHELD MANUAL OPERATION

Ergonomically designed grip with switch lever is easy to hold and handle in manual operation.

.

RELIABLE REPEATABILITY OF TIGHTENING TORQUE

The tightening torque set on the Technart controller is precisely conveyed to the driver unit, controlled and maintained, regardless of joint characteristics and frictional differences.

.

MINIMUM G-SHOCK

Shock and impact to the work-piece is minimum, thanks to the unique driver mechanism and tightening process control.

.

SUITABLE FOR USE IN CLEAN ROOM ENVIRONMENTS

It is designed to minimize particle emission, static charge and noise interference, making it suitable for use in Clean Room environments.

.

TORQUE FAMILY LINEUPS COVERING WIDE RANGE OF TORQUE

A wide range of torque family models is available in standard, covering 0.03 to 2 Nm..

.

SIMPLE MAINTENANCE

Replacement of bit, sleeve etc. and also cleaning is simple and easy to access.

.

RELIABLE VACUUM PICKUP OF ANY SIZE / TYPE SCREW

Vacuum pickup of screw is effective for any type, size or material of screw.

.

ONE-TOUCH QUICK CHANGE CHUCK FOR INTERNATIONAL INDUSTRY STANDARD BIT SHANK

International industry standard shank bit can be fitted directly.

.

RELIABLE CONNECTOR AND FLEXIBLE CABLE

For connection between controller and driver, flexible cable for robotic use fitted with self-lock connector is used.

.

ERROR DETECTION

Alarm is output by controller when screw tightening has not been completed successfully. The LED on the driver is also lit on error.

.

OPTIONAL BIT CUSHION

Optional bit cushion mechanism absorbs and minimizes impact and shock to delicate work-piece.

.

OPTIONAL BIT GROUNDING MECHANISM

Sister models SG and MG are equipped with continuous bit grounding mechanism. It achieves complete grounding even during the bit rotation and is ideal for use in most critical ESD sensitive environments.

.
